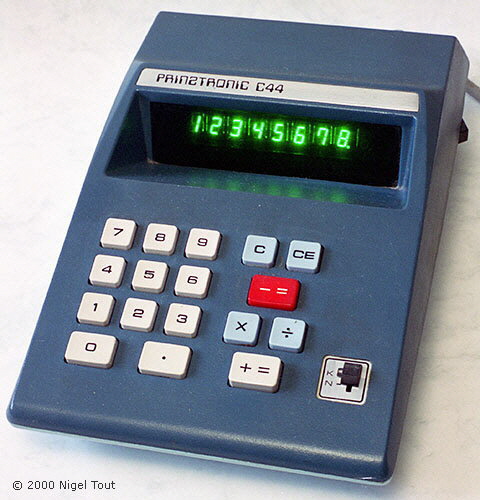

Prinztronic C44
Prinztronic C44
Power source - AC Mains.
Display is 8 digits, individual green Vacuum Fluorescent Display (VFD) tubes.
4 functions.
Main Integrated Circuit - Sharp SD3276.
155 mm x 240 mm x 70 mm (6" x 9.5" x 2.75"), 1Kg (2 lbs).

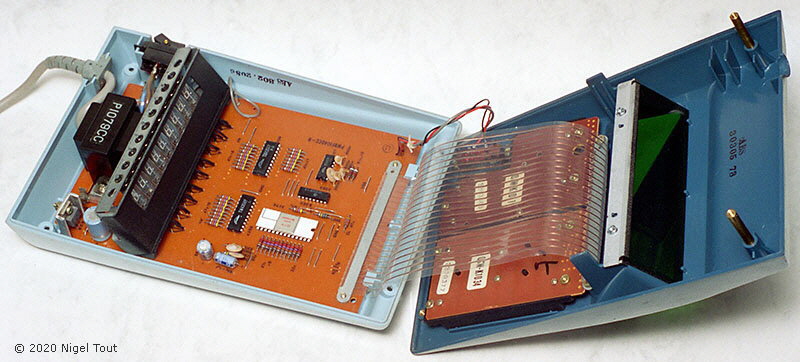

Prinztronic C44 with the casing opened. On the left is the assembly of individual VFD tubes, while the white ceramic integrated circuit is the Sharp SD3276.
